In-ceiling Speaker - K-68d - Preference Audio
In-ceiling Speaker - K-82d - Preference AudioIn-ceiling Speaker - K-82d - Preference Audio

In-ceiling Speaker - K-82d - Preference AudioIn-ceiling Speaker - K-82d - Preference Audio


Overall Dimensions:
9-7/8" dia.
(250.5 mm)

Cut-out Dimensions:
8-5/8" dia. x 3-7/8" deep
(219 mm x 98.4 mm)


Lifetime Limited Warranty

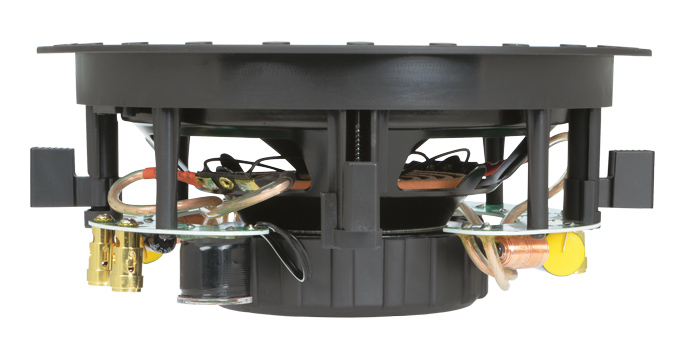

K-82d
8" 2-way In-Ceiling / Wall - Frameless
Single Point Stereo

Every model loudspeaker is "timbre-matched" ensuring sonic uniformity throughout the line. This means all models have been carefully engineered to have a family sound; this is also referred to as "voice matching".

Certain fine loudspeakers in the audio industry become benchmarks of sound quality or reference standards by which authoritative industry experts judge all others.

architectural loudspeakers are the new mark of excellence.
You will find no greater value.

Frequency Response: 35Hz - 21kHz ± 3 dB
Power Handling: 60 watts nom. 120 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: Dual 3/4" Tetoron® soft dome tweeters
NEW Frameless Design with Magnetically-Attached Grille
Round and Square Grille option: Round Model: MGR-8f  Square Model: MGS-8f
Impedance: 8 ohms nominal

High-grade crossovers with polyswitch overdrive protection
Woven woofers are made from genuine DuPont Kevlar® fiber
Dual high temperature Polyimide voice coils
Load-balancing toggle mounting system
Stainless screws
Grilles may be painted to match mounting surface
Magnetic, frameless, micro-perforated, vibration free, All-Weather Grille
  (may be custom painted)
Sold and Shipped Individually
Acoustically transparent scrim cloth (not foam) grille backing
  hides speaker components from view

Optional Accessories: (sold separately)
Pre-construction Bracket: RIR-8
Vapor Dome: VPD-8
Bridge for T-Bar Ceiling: PB-8
Plenum Dome: PE-8
Square Frameless Grille: MGS-8f

  Master Carton Dimensions: 14"x16"x14"
  Master Carton Weight: 30 lbs.
  Master Carton Quantity: 4 each
  Inner Carton Dimensions: 13"x8"x13"
  Inner Carton Weight: 7 lbs.


DuPont and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
